The BaSyx Configuration Service is a one-shot command-line service. It does not expose API endpoints and does not run as a daemon.

Main Components#

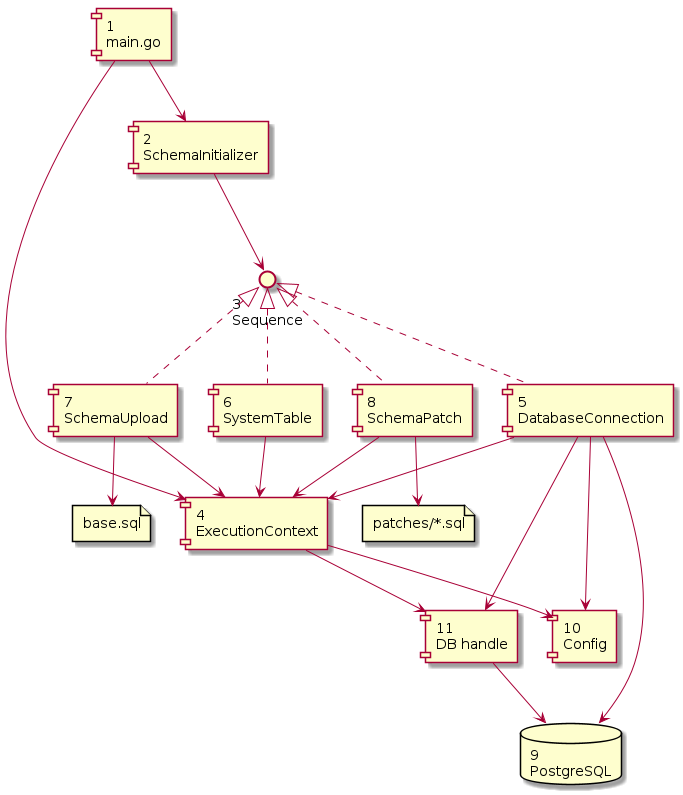

@startuml skinparam componentStyle rectangle component "1\nmain.go" as Main component "2\nSchemaInitializer" as Initializer interface "3\nSequence" as Sequence component "4\nExecutionContext" as Context component "5\nDatabaseConnection" as DBSeq component "6\nSystemTable" as SystemSeq component "7\nSchemaUpload" as UploadSeq component "8\nSchemaPatch" as PatchSeq database "9\nPostgreSQL" as Postgres component "10\nConfig" as Config component "11\nDB handle" as DBHandle file "base.sql" as BaseSQL file "patches/*.sql" as PatchSQL Main --> Initializer Main --> Context Initializer --> Sequence Sequence <|.. DBSeq Sequence <|.. SystemSeq Sequence <|.. UploadSeq Sequence <|.. PatchSeq DBSeq --> Config DBSeq --> DBHandle DBSeq --> Postgres DBSeq --> Context SystemSeq --> Context UploadSeq --> Context PatchSeq --> Context Context --> Config Context --> DBHandle DBHandle --> Postgres UploadSeq --> BaseSQL PatchSeq --> PatchSQL @enduml

No.

Component

Responsibility

1

Service entry point

Parses flags, creates the shared execution context, registers sequences, and executes the initializer.

2

Schema initializer

Stores ordered sequences and executes them one after another.

3

Sequence interface

Defines the executable contract for initialization steps.

4

Execution context

Shares loaded configuration and the database handle between sequences.

5

Database connection sequence

Loads config, builds the PostgreSQL DSN, opens the database connection, and applies pool settings.

6

System table sequence

Creates and seeds basyxsystem when required.

7

Schema upload sequence

Uploads base.sql when the base schema is not initialized.

8

Schema patch sequence

Applies a registered patch when the database version is older than the patch target version.

9

PostgreSQL database

Stores the BaSyx schema, system version row, and application data.

10

Configuration object

Holds the loaded service and PostgreSQL settings used by later sequences.

11

Database handle object

Provides the opened PostgreSQL connection handle stored in the execution context.

Implementation locations:

  • 1: cmd/basyxconfigurationservice/main.go

  • 2: internal/basyxconfigurationservice/schema_initializer.go

  • 3: internal/basyxconfigurationservice/sequences/i_sequence.go

  • 4: internal/basyxconfigurationservice/sequences/execution_context.go

  • 5: internal/basyxconfigurationservice/sequences/database.go

  • 6: internal/basyxconfigurationservice/sequences/system_table.go

  • 7: internal/basyxconfigurationservice/sequences/schema_upload.go

  • 8: internal/basyxconfigurationservice/sequences/schema_patch.go

Interaction Overview#

The entry point (main.go) registers sequences explicitly. The initializer does not discover sequences automatically. Each sequence receives the same ExecutionContext, allowing earlier sequences to provide state for later sequences.

The database connection sequence populates the context with Config and DB. Config provides the loaded configuration values, especially PostgreSQL connection and pool settings. DB is the opened PostgreSQL handle used by all later database-related sequences to execute SQL against PostgreSQL.
