Release Advisor

This guide explains how to keep BaSyx core services, database patches, Docker images, and examples in sync when releasing changes that affect the database schema.

Release Principle

The BaSyx Configuration Service owns database initialization and patch execution. Regular BaSyx core services do not migrate the database; they validate that the database version matches the version they expect.

For every schema-affecting release, these parts must move together:

• database/base.sql

• database/patches/*.sql

• Patch registration in cmd/basyxconfigurationservice/main.go

• common.CURRENT_DATABASE_VERSION in internal/common/database.go

• Docker images for the Configuration Service and affected BaSyx core services

• Docker Compose examples and integration-test compose files

If one part is updated without the others, deployments can fail at startup or run with an incompatible schema.

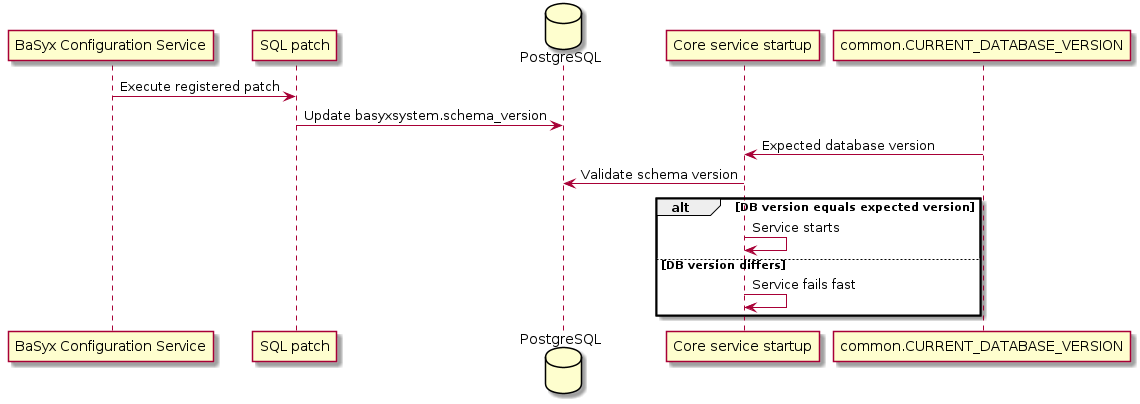

Core Service Synchronization Model

Core services call the common database version validation during startup. The expected version is defined centrally as common.CURRENT_DATABASE_VERSION.

Hint

The Configuration Service must be able to bring the database to the same version that core services expect. For example, if CURRENT_DATABASE_VERSION is v1.0.2, the Configuration Service must register and execute patches up to v1.0.2.

Warning

The Configuration Service version should match the version of the BaSyx service, for example the AAS Repository, so the database version produced during startup is the same version expected by the running service.

Schema Release Checklist

Use this checklist whenever a release changes the database schema.

• Add a new SQL patch file under database/patches.

• Ensure the patch file updates basyxsystem.schema_version to the new target version and leaves basyxsystem.state as clean.

• Register the new patch in cmd/basyxconfigurationservice/main.go after all older patches.

• Update common.CURRENT_DATABASE_VERSION in internal/common/database.go to the new target version.

• Keep database/base.sql aligned with the full schema expected for fresh installations.

• Do not edit already released patch files.

• Verify Docker Compose files start basyx_configuration before services that validate the database version.

• Run unit tests for internal/basyxconfigurationservice.

• Run representative integration tests for services affected by the schema change.

Fresh Installations vs Upgrades

Scenario	Expected behavior
Fresh database	SystemTable creates basyxsystem with v1.0.0, SchemaUpload uploads base.sql, then registered patches advance the version.
Existing database at old version	SchemaUpload skips the base schema when base tables exist, then newer registered patches run sequentially (including SystemTable version bump to the newest patch version).
Existing database already current	Base schema upload and already applied patches are skipped.

Version Alignment Example

When releasing v1.0.2:

1. Create database/patches/102.sql.

2. End the patch with:

UPDATE basyxsystem
SET schema_version = 'v1.0.2',
    state = 'clean'
WHERE identifier = (
  SELECT identifier
  FROM basyxsystem
  ORDER BY identifier ASC
  LIMIT 1
);

3. Register the patch in cmd/basyxconfigurationservice/main.go:

schemInit.Register(steps.NewSchemaPatch(execCtx, filepath.Join(patchBasePath, "101.sql"), "v1.0.1"))
schemInit.Register(steps.NewSchemaPatch(execCtx, filepath.Join(patchBasePath, "102.sql"), "v1.0.2"))

4. Update the expected service version in internal/common/database.go:

const (
    CURRENT_DATABASE_VERSION = "v1.0.2"
)

5. Build and release the Configuration Service image and the affected BaSyx core service images with matching versions.

Docker Compose Coordination

Any compose file that starts a database-backed BaSyx service should include the Configuration Service as a completed dependency.

Recommended pattern:

services:
  basyx_configuration:
    image: eclipsebasyx/basyxconfigurationservice-go:<release-tag>
    depends_on:
      db:
        condition: service_healthy

  submodelrepository:
    image: eclipsebasyx/submodelrepository-go:<release-tag>
    depends_on:
      basyx_configuration:
        condition: service_completed_successfully
      db:
        condition: service_healthy

This prevents core services from starting before schema initialization and patches are complete.
