Execution Flow

Execution Flow#

Startup Lifecycle#

The service lifecycle is deterministic and runs before the BaSyx services start:

  1. Parse command-line flags.

  2. Create an empty ExecutionContext.

  3. Create a SchemaInitializer.

  4. Register sequences in the intended execution order.

  5. Execute all sequences sequentially.

  6. Close the database handle.

  7. Exit with status 0 on success or status 1 on failure.

Current Registered Order#

The service currently registers:

  1. DatabaseConnection

  2. SystemTable

  3. SchemaUpload

  4. SchemaPatch for 101.sql targeting v1.0.1

These components are described in the architecture overview.

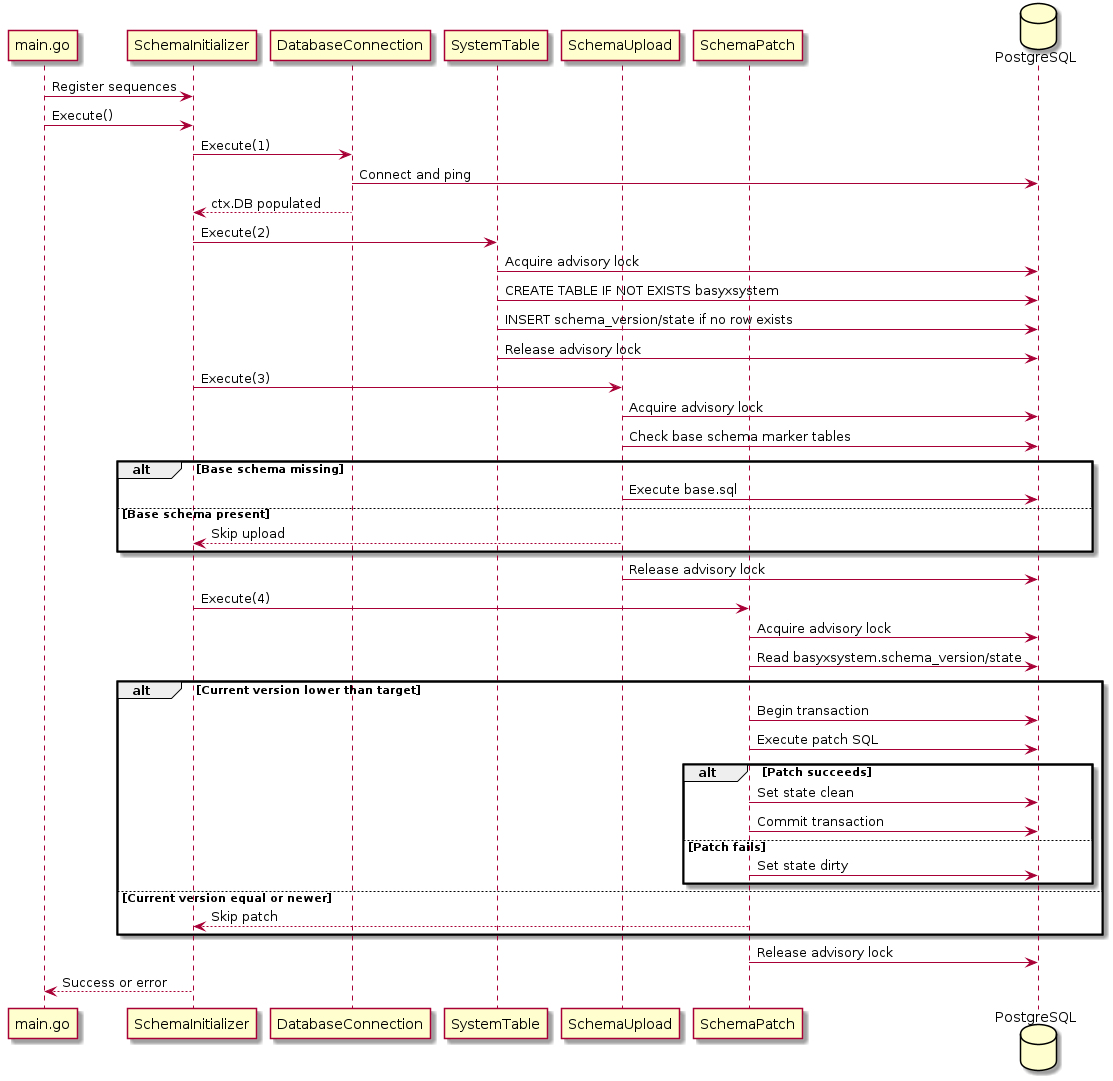

Flow Diagram#

@startuml participant "main.go" as Main participant "SchemaInitializer" as Init participant "DatabaseConnection" as DB participant "SystemTable" as System participant "SchemaUpload" as Upload participant "SchemaPatch" as Patch database "PostgreSQL" as PG Main -> Init: Register sequences Main -> Init: Execute() Init -> DB: Execute(1) DB -> PG: Connect and ping DB --> Init: ctx.DB populated Init -> System: Execute(2) System -> PG: Acquire advisory lock System -> PG: CREATE TABLE IF NOT EXISTS basyxsystem System -> PG: INSERT schema_version/state if no row exists System -> PG: Release advisory lock Init -> Upload: Execute(3) Upload -> PG: Acquire advisory lock Upload -> PG: Check base schema marker tables alt Base schema missing Upload -> PG: Execute base.sql else Base schema present Upload --> Init: Skip upload end Upload -> PG: Release advisory lock Init -> Patch: Execute(4) Patch -> PG: Acquire advisory lock Patch -> PG: Read basyxsystem.schema_version/state alt Current version lower than target Patch -> PG: Begin transaction Patch -> PG: Execute patch SQL alt Patch succeeds Patch -> PG: Set state clean Patch -> PG: Commit transaction else Patch fails Patch -> PG: Set state dirty end else Current version equal or newer Patch --> Init: Skip patch end Patch -> PG: Release advisory lock Init --> Main: Success or error @enduml

Hint

The diagram shows the current example with one registered patch path to v1.0.1. If multiple patches are registered, the SchemaPatch step repeats in registration order.

Error Handling#

SchemaInitializer.Execute() stops on the first sequence error. Errors are wrapped with BASYXCFG-INIT-EXECSTEP, including the failed sequence index and status code.

Sequences return:

  • 0, nil on success.

  • Non-zero status and an error on failure.

The main function logs the wrapped error as BASYXCFG-MAIN-EXECUTE and exits with status 1.

Locking Behavior#

SystemTable, SchemaUpload, and SchemaPatch use the same PostgreSQL advisory lock ID. This serializes schema changes across concurrent Configuration Service instances.

The patch sequence acquires the advisory lock before reading the current database version. This prevents two instances from both deciding that a patch must run based on the same old version.
